- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com/ap/en.html
- Brand Name
- Zebra
- Product Series
- AN700
- Marketing Information

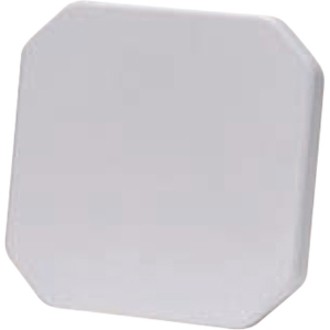

The AN700 Series antennas offer all the features required for carpeted and customer-facing environments. A perfect complement to Motorola's FX7400 RFID Reader, the AN700 Series antennas are extremely compact, offering the aesthetics required for the most discreet installation in the most space constrained areas. For example, under the point of sale (POS) counter. The integrated mounting bracket enables easy installation in minutes. The AN710 is designed for inside the four walls. The rugged AN720 is designed to withstand exposure to rain, snow and extreme temperatures ideal for the receiving dock doors or outdoor shopping areas.
- Product Type
- Antenna
- Technical Information
- Frequency Band Type
- UHF
- Operating Frequency Range
- 900 MHz to 928 MHz
- Antenna Gain (Isotropic)
- 3 dBi
- Impedance
- 50 Ohm
- Polarization
- Circular
- Features
- Rugged
- Interfaces/Ports
- Connector Type
- N-Type
- Physical Characteristics
- Height
- 132.1 mm
- Width
- 132.1 mm
- Depth
- 17.8 mm
- Weight (Approximate)
- 370 g
- Miscellaneous
- Application/Usage
- Outdoor
